EMAX ES3302 12.4g Mini Metal Gear Analog Servo For RC Airplane Glider- (Original)

EMAX ES3302 12.4g Mini Metal Gear Analog Servo For RC Airplane Glider- (Original)

• Model: ES3302 Servo
• Weight: Approx.12.4g/0.44oz
• Working Voltage: 4.8va 6.0v
• Working Speed: 0.12/0.10s/ 60° no load

Description:

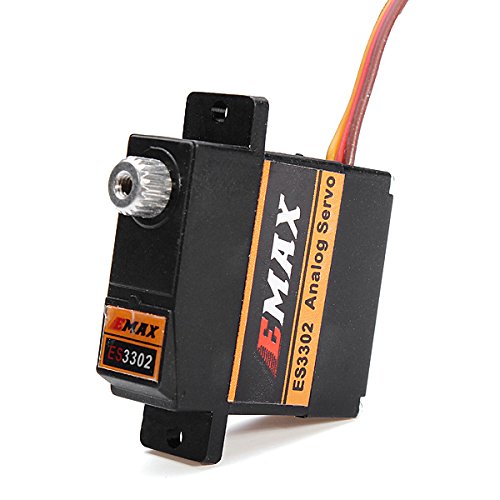

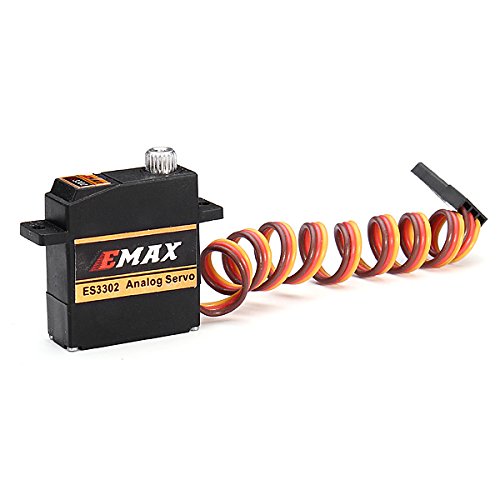

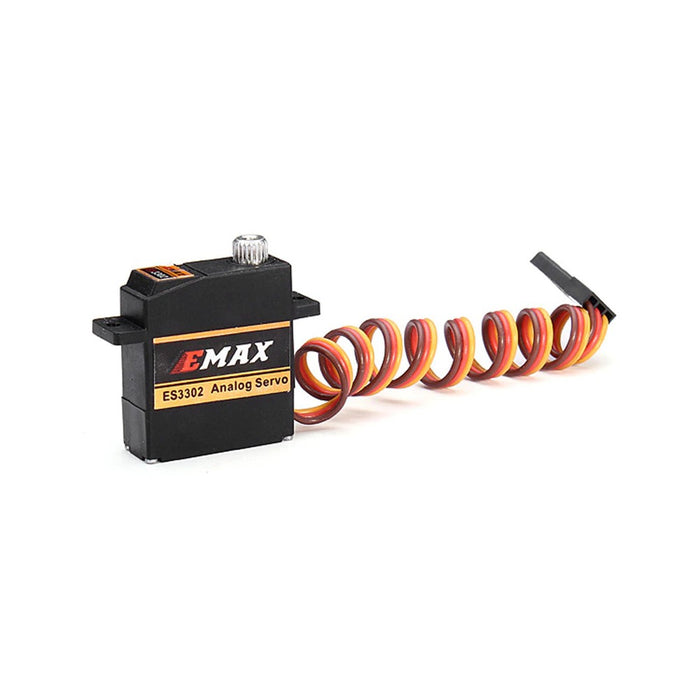

This is ES3302 12.4g Mini Metal Gear Analog Servo for RC Airplane Glider Small in size but powerful enough for up to 2.8kgf.cm Applications. With excellent performance and high quality. Nice replacement accessory for the old or broken one. Double bearing design enables the servo to keep low backlash and smoothness for a long time. It comes with many accessories, which make it easy to install.

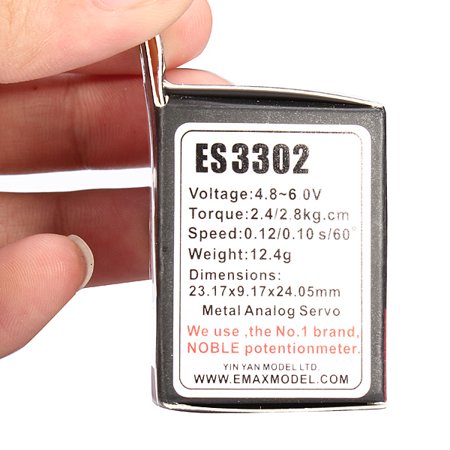

Specification:

• Model: ES3302 Servo
• Weight: Approx.12.4g/0.44oz
• Working Voltage: 4.8va 6.0v
• Working Speed: 0.12/0.10s/ 60° no load
• Stop Torque (4.8v): 2.4kgf.cm
• Stop Torque (6.0v): 2.8kgf.cm
• Gear Type: metal gear
• Socket Type: Futaba/JR

Features:

• Ultra-thin design, with a width of 9mm, this servo is an ideal choice for gliders.
• Made of special engineering plastics, the gear set and case are super tough.
• Noble potentiometer: assuring high accuracy and coherence.
• The dual-bearing design maintains low backlash and smoothness of the servo for a long time.

Package Included:

• 1  x ES3302 12.4g Mini Metal Gear Analog Servo for RC Airplane Glider
• 1 x Servo horns and Accessories Set
