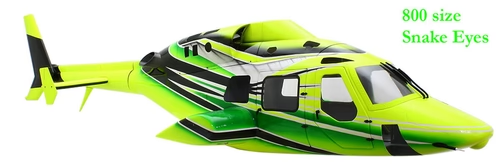

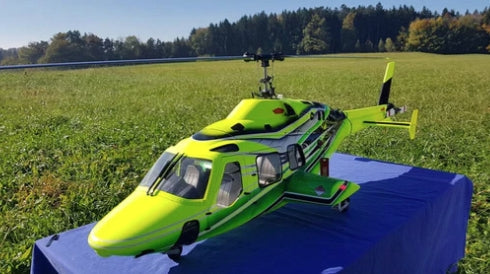

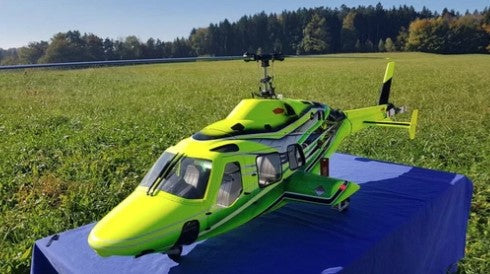

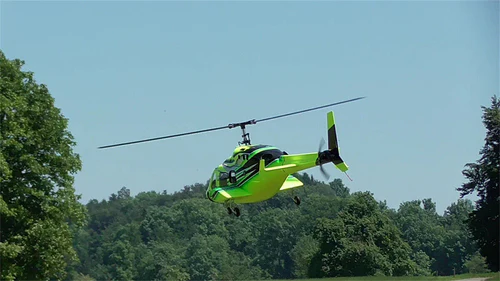

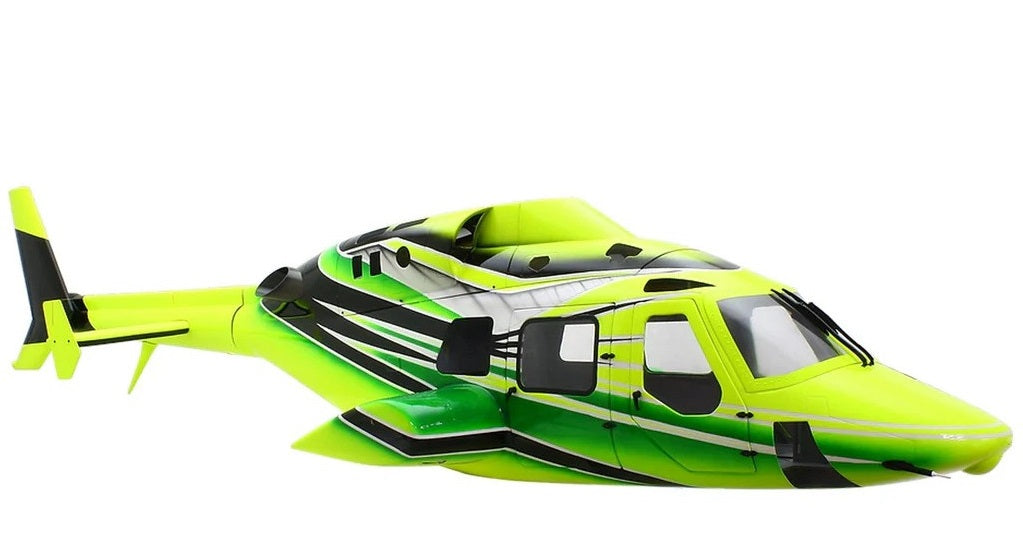

ROBAN B222 SNAKE EYES 800 SIZE SCALE HELICOPTER FUSELAGE

ROBAN B222 SNAKE EYES 800 SIZE SCALE HELICOPTER FUSELAGE

SKU HHC-06459
Sold out
₹ 325,390.00 - ₹ 325,390.00
₹ 325,390.00
₹ 325,390.00 - ₹ 325,390.00
₹ 325,390.00

ROBAN B222 SNAKE EYES 800 SIZE SCALE HELICOPTER FUSELAGE

800 SIZE BELL222 FIBER GLASS SCALE BODY HELICOPTER FUSELAGE WITHOUT DISPLAY STAND

Specification:
Body length:    1794mm
Length incl. rotors:    1960mm
Width:    580mm
Height:    510mm
Main rotor diameter    1660mm
Main blade length:    750mm
Fenstron diameter:    160mm
Tail blade length:    70mm
Main shaft diameter:    12mm
Tail shaft diameter:    5mm
Spindle diameter:    8mm
Main blade count:    2
Tail blade count:    9
Drive gear ratio:    1:13.8:4.7
Features:
 2 Blade rotorhead and scale carbon fiber rotor blades
2 Tail blade head and scale carbon fiber tail blades
Extremely detailed surface with molded panel lines and rivets
 Completely illuminated scale cockpit
Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
 Special CCPM mechanics built in the top section like the full scale
Take off weight of 8.5kg (approximately double of a 700 3D helicopter)
 1794mm long, 1/8 scale
Includes:
·         Roban B222 Snake Eyes 800 size scale body
·         Full 800 size helicopter mechanics
·         2 Carbon fiber rotor blades
·         2 Carbon fiber tail blades
·         Complete illuminated scale cockpit
·         Complete built in / partially pre-installed position lighting system
Requires:
Speed controller:*    1x 120A brushless, 12S capable
Flight time:    8 minutes
Takeoff weight:    8000g
Flight Stabilization:*    3 axis flybarless gyro
·         Helicopter flight controller - BavarianDEMON 3X Flybarless Syste
·         Battery eliminator circuit (BEC) – 20 A
·         Brushless motor - 4035-500Kv brushless
·         Three cyclic servos -  DS1220 High Torque Servo Multi-Pack (3 Servos)
·         Tail servo - MKS DS HBL980
·         12 Cell 44.4V 5000mAh LiPo battery - Admiral 5000mAh 6S 22.2V 50C LiPo Battery Multi-Pack
·         8 Channel radio - select a minimum 8 channel radio
·         8 Channel receiver - select a minimum 8 channel receiver
OUTER BOX MEASUREMENTS: 120X57X40 CMS
APPROX WEIGHT : 11.6KG
