GAUI X7 FULL HELI KIT WITH BLADES  & MOTOR HKII-4035-500KV MOTOR

GAUIX7 FULL HELI KIT WITH BLADES  & MOTOR HKII-4035-500KV MOTOR

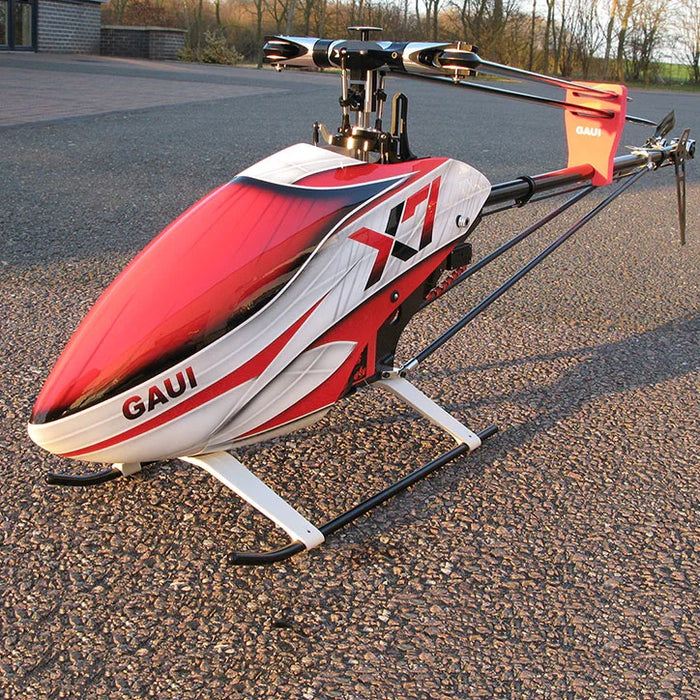

GAUI X7 Full Kit without Blades & HKII-4035-500KV Motor

Elevate your RC helicopter game with the GAUI X7 Full Kit  and HKII-4035-500KV Motor, a premium hobby-grade setup for serious pilots. This high-performance package delivers unmatched agility and precision, perfect for 700-class aerobatics and 3D flight mastery. Havoc Hobby Private Limited brings you this authentic scale replica, built for durability and smooth control.

Crafted with a rigid carbon fiber frame and reinforced metal components, the GAUI X7 withstands aggressive maneuvers and crashes while keeping weight low at around 1.8kg AUW (all-up weight). Its 700mm main blade diameter offers exceptional lift and responsiveness, paired with a detailed cyclic and tail assembly for realistic scale detailing. The included Scorpion HKII-4035-500KV brushless motor provides powerful 8S-12s LiPo compatibility, delivering torque for vertical hovers and blistering head speeds over 200km/h.

Key Features
•    690mm main rotor diameter for superior lift and agility
•    Carbon fiber and aluminum construction for lightweight durability
•    Scorpion HKII-4035-500KV brushless motor (8-12S LiPo ready, 500KV rating)
•    Rotor head optimized for 3D aerobatics and scale flight
•    Dimensions: 1,150mm overall length; 320mm tail rotor diame

What’s Inside the Box:-

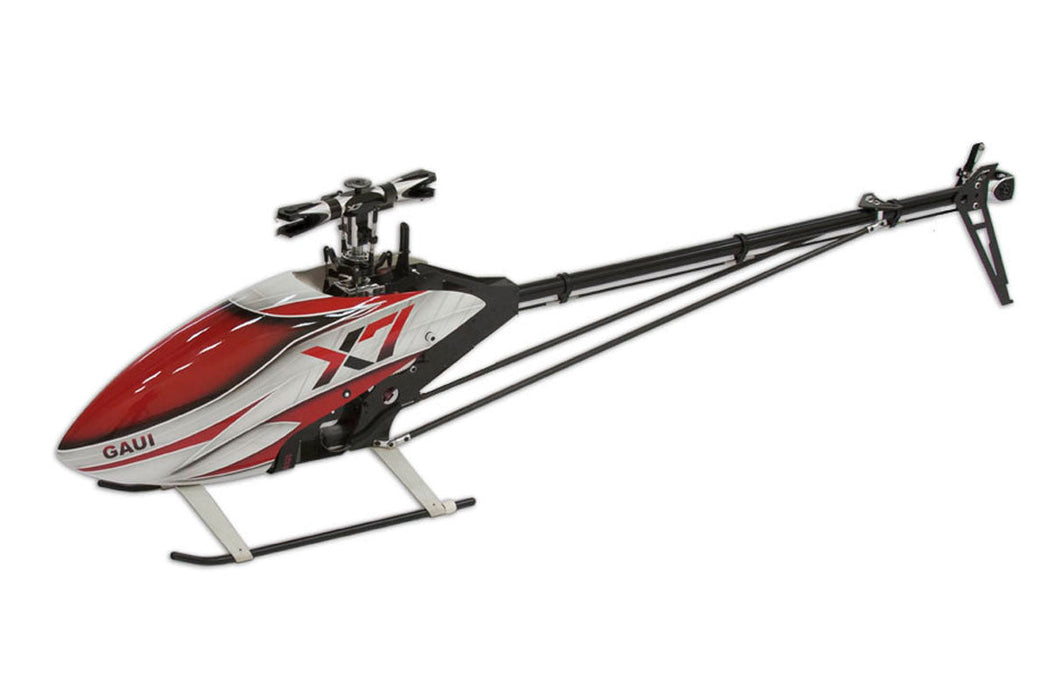

·         GAUI X7 full airframe kit

·         Scorpion  HKII-4035-500KV brushless motor

·         Assembled rotor head, swashplate, and linkage set

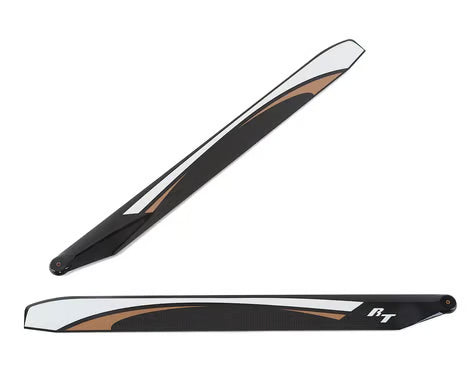

·         Rotor tech 690mm Flybarless main blades

Specifications :-
Length: 690mm
Width: 61.5mm
Root Size: 12mm
Hole Diameter: 4-5mm

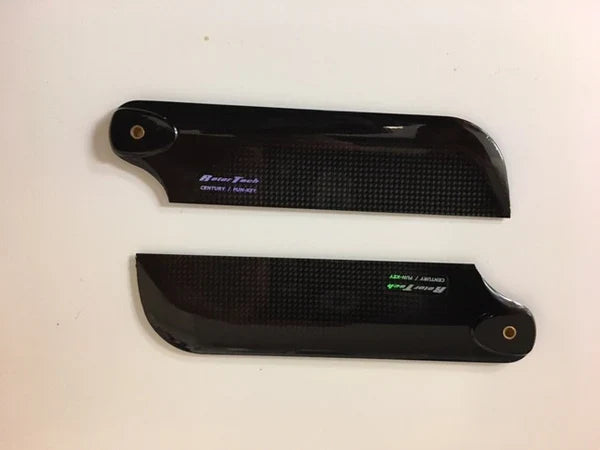

·         Rotor tech 105mm tail blades

Specifications :-

Length 105mm

Grip 5mm

Width 30mm

Hole 3mm

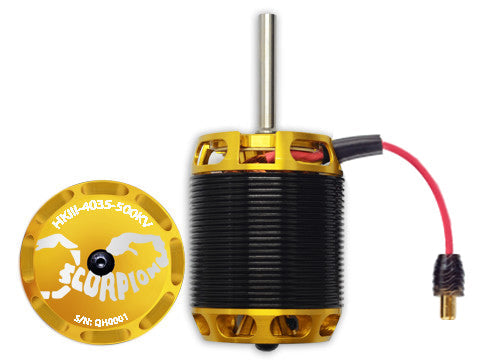

  Scorpion  HKII-4035-500KV brushless motor Specifications:-

The Scorpion HKIII-4035 Series Motor* is designed for using on 700 class helicopters running on 12-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 700 class electric helicopter.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!

This motor is using 30mm*25mm bolt spacing on the mounting with M4 Screw holes

Specifications

At Havoc Hobby Private Limited, we stand by the authenticity and quality of every hobby-grade product, rigorously tested for peak performance. Count on our expertise for genuine RC components, expert support, and fast delivery to fuel your passion.
