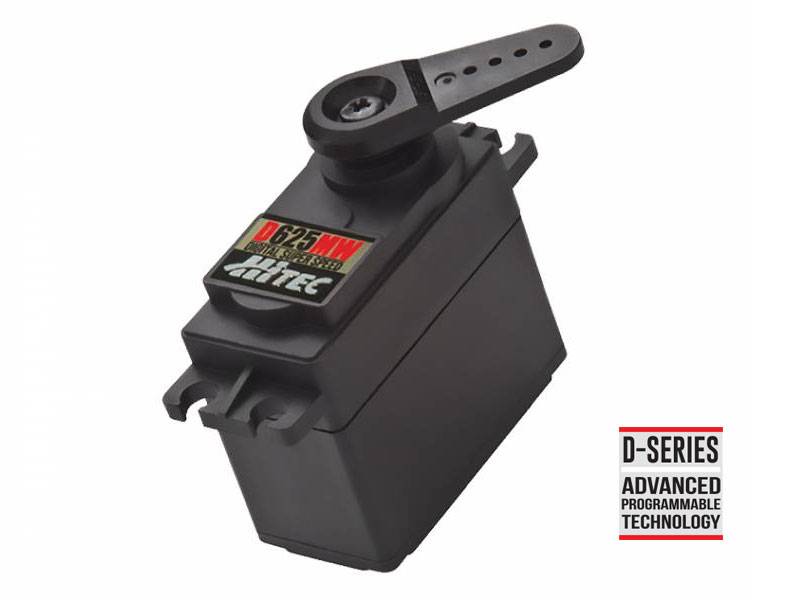

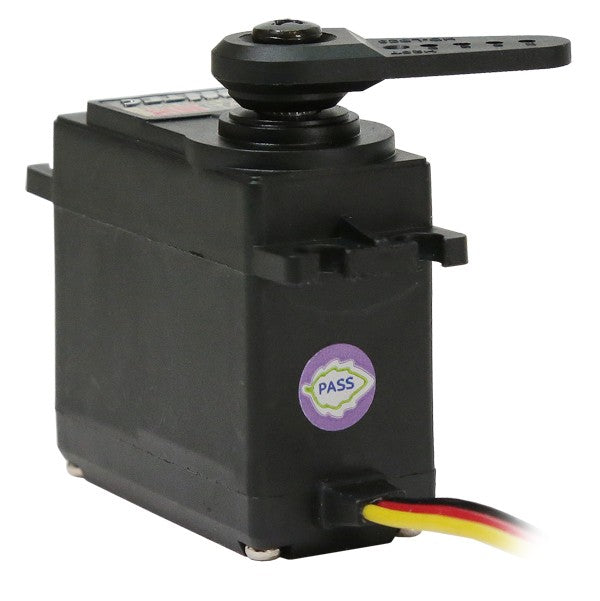

Hitec D-625MW 32-Bit High Speed Metal Gear Servo

HAVOProduct Description

The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

This is the upgraded version of the HS-5665MH

Features
Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Specifications

• Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V

• Speed (Second @ 60°) 0.20 ~ 0.15 ~ 0.13

• Maximum Torque Range oz. / in. 87 ~ 122 ~ 139

• Maximum Torque Range kg. / cm. 6.3 ~ 8.8 ~ 10.0

• Current Draw at Idle 30 mA

• No Load Operating Current Draw 500 mA

• Stall Current Draw 2,650 mA

• Dead Band Width 2 µs

• Dimensions (Inches) 1.59 x 0.77 x 1.48

• Dimensions (Metric) 40.6 x 19.8 x 37.8

• Weight (Ounces) 2.11

• Weight (Gram) 57.0

• Circuit Type 32bit Programable Digital

• Motor Type 3 Pole Metal Brush Ferrite

• Gear Material Metal

• Bearing Type Dual Ball Bearing

• Output Shaft (type / Ømm) H25T

• Case Material Plastic

• Dust / Water Resistance N / A

• Connector Gauge (AWG) / Strand Count 22 / 60
