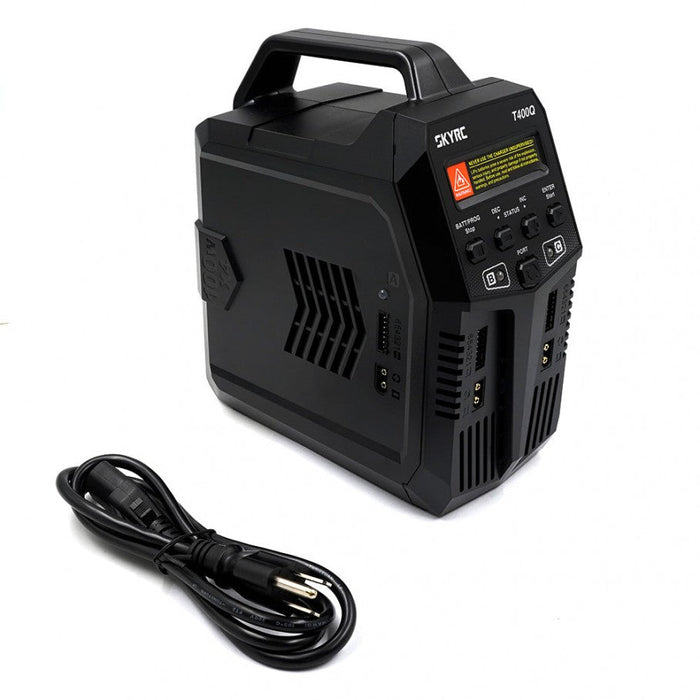

Skyrc T400Q 4X100W Quattro Balance Charger / Discharger

SKYRC T400Q 4X100W QUATTRO BALANCE CHARGER / DISCHARGER

SkyRC T400Q is a multi-function quattro balance charger/discharger with four independent circuits that can charge various chemistries batteries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb).

The charger delivers up to 100W per port and can charge four batteries simultaneously at up to 12 amps each. It comes ready to charge in the most compact design yet while taking up minimal space in the pit area. And the handle design ensures the charger is convenient to carry. Additionally, Additionally, the charger also can charge AGM and Pb battery under a low temperature in the AGM and Cold modes.

Features

• 2 independent charging channels
• 2x 100W charging power and maximum 12.0A charging current
• DC Input Voltage:11-18V
• AC Input Voltage : 100-240V
• Display Type: 2x16 LCD
• Display Backlight: Blue
• Case Material: Plastic
• Controls: Five Buttons
• Case Size: 186*103*209mm
• Weight: 1951g

Specifications

• External Port: 2-6S Balance Socket-XH, Battery Socket, DC Input.
• Delta Peak Detection for NiMH/NiCd:3-15mV/cell / Default: 4mV/cell
• Charge Voltage:
  • LiPo: 4.18-4.25V/S LiHV:4.25-4.35V/S
  • LiFe: 3.58-3.7V/S LiIon: 4.08-4.2V/S
  • PB: 2.40-2.45V/S
• • NiMH/NiCd: Delta peak detection
• Balance Current: 500mA/cell
• Reading Voltage Range: 0.1-26.1V/cell
• Battery Types/Cells:
  • LiPo/LiHV/LiFe/LiIon: 1-6S
  • NiMH/NiCd: 1-15S
  • Pb: 2-20V
• Battery Capacity Range:

• NiMH/NiCd: 100-50000mAh
• LiPo/LiHV/LiFe/LiIon: 100-50000mAh

• Charge Current: 0.1A-12.0A
• Charge Wattage: 100W X 4
• Discharge Current: 0.1A-2.0A
• Discharge Wattage: 10W
• Discharge Cut-off Voltage:
• • NiMH/NiCd: 0.1-1.1V/S
  • LiPo: 3.0-3.3V/S LiFe: 2.6-2.9V/S
  • LiHV: 3.1-3.4V/S LiIon: 2.9-3.2V/S
  • Pb: 1.8-2.0V/S
• Memory: The charger can store up to10 different charge/discharge profiles on each port.
• Charge Method:
  • CC/CV for lithium types and lead (Pb) batteries
  • Delta-peak Sensitivity for NiMH/NiCd.
• Capacity Cut-off: 100~50000mAh & OFF(default: 5000mAh)
• Safety Timer: 1~ 720min &OFF(default: 120mins)

Content

• SkyRC T400Q Charger 4x100W
• Power Cord
• English manual
