Spektrum IX12 12 Channel Radio With AR10100T Receiver

• Features of SPEKTRUM IX12 12 CHANNEL RADIO

• KEY FEATURES

  • 12 fully proportional channels at 2048 resolution
  • 4-inch color screen with Multi-Touch technology
  • Android interface with a dedicated quad-core processor
  • Intuitive Spektrum™ AirWare Touch programming app
  • Compatible with Spektrum AirWare firmware G2 model setups
  • Industry-leading Spektrum DSMX® 2.4GHz technology
  • Plug and play TBS Crossfire CRSF long-range technology compatible
  • WiFi connectivity and convenience
  • Easy access to updates, apps and the Internet
  • Bluetooth connectivity for compatible devices
  • Customizable audio events with WAV and MP3 support
  • Programmable text-to-speech voice alerts
  • Voice alerts over speaker, headphones or Bluetooth
  • Integrated telemetry support delivers critical real-time data
  • Wireless trainer link for instruction and flight simulation
  • Built-in 2.4GHz diversity antennas for the most robust signal link possible
  • Fast 11ms frame rate with compatible receivers
  • Superb ergonomics based on user feedback
  • Smooth quad-bearing gimbals with front-access adjustments
  • 250-model internal memory, plus SD card expansion
  • Rechargeable 6,000mAh Li-Ion transmitter battery pack
  • Convenient Micro-USB charging and connectivity

  PRODUCT SPECIFICATIONS

  # of Channels: 12

  Modulation: DSM2/DSMX

  Band: 2.4GHz

  Model Memory: 250

  Modes: User Selectable Mode 1-4

  Transmitter (Tx) Battery Type: 3.7V 1S 6000 mAh Lithium Ion Battery

  Switch: 3 POS

  Experience Level: Advanced

• Full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase
• Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application
• Features a bind button for easy binding with no plugs necessary
• Compact footprint to fit in a wide range of aircraft

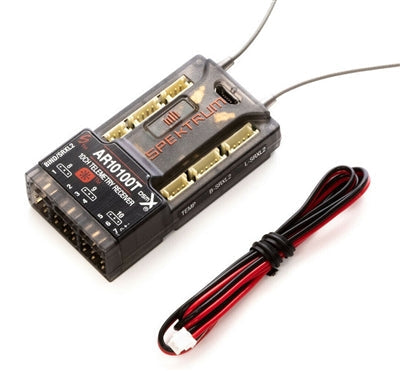

Features of AR10100T RECEIVER

• Compatible with all Spektrum DSM2 and DSMX transmitters
• Compact footprint fits most parkflyer size, sport class and giant scale models
• Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
• VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
• XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy and more
• Micro USB port for easy registration and firmware updating capability
• Bind button allows for easy binding and eliminates the use of bind plug
• Two external antennas will ensure secure RF coverage from all angles of the aircraft
• Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• End pin output pins for easy and compact installation
• Forward Programming capable for setting individual failsafe parameters per channel and moreThe Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft.
• It features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.
• The AR10360T It also features 2 SRXL2 ports for added SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind servo header is available to connect smart devices, bind with a traditional bind plug, or connect a battery.
• The AR10100T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe'" technology and Hold Last as well as preset failsafe types set through forward programming. Also, the throttle port is Smart ESC compatible right out of the box.
