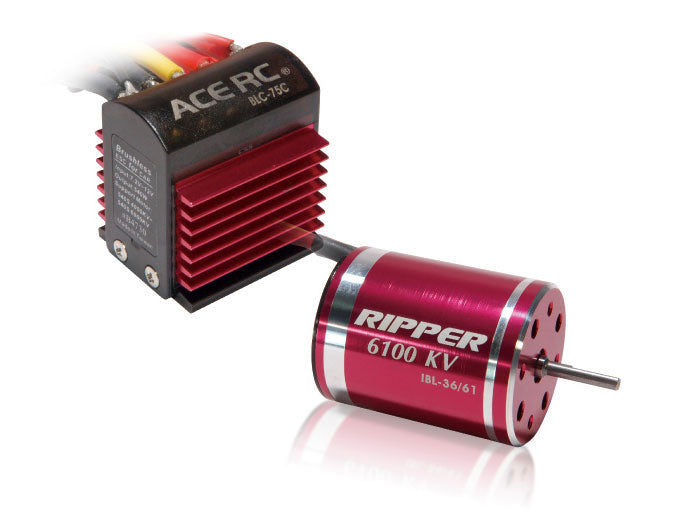

THUNDER TIGER BLC-75C BRUSHLESS SYSTEM MODEL 8057
Content
THUNDER TIGER BLC-75C BRUSHLESS SYSTEM MODEL 8057

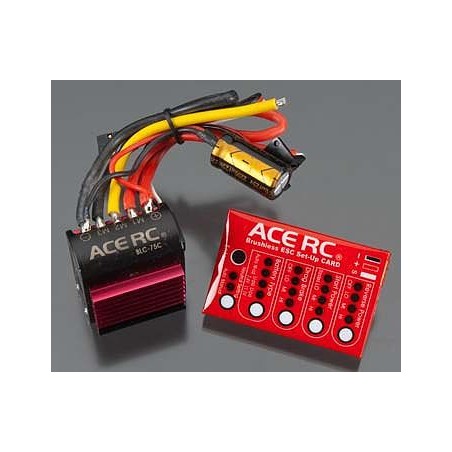

ITEMS INCLUDED: ESC, Brushless motor, ESC setting card, Motor Fan
ACE RC Brushless ESC
Ready to enjoy brushless power to the fullest? ACE RC BLC series brushless ESC is an affordable, high performance and efficient brushless ESC offering most 1/10 scale and 1/18 scale drivers the most convenient way to upgrade their car to brushless. All series ESC are available in either stand-alone or in combos wit extreme power brushless, sensorless motor for immediate, " plug and play " use.
RIPPER IBL 540C Series brushless motors
|
Product Name |
IBL36/49-540-C |
IBL36/61-540-C |
|
Item No. |
2359 |
2360 |
|
Motor Type |
BQ6092 |
BQ6093 |
|
Voltage range |
6~8 cells |
6~8 cells |
|
RPM per volt |
4900RPM/V |
6100 RPM/V |
|
Dimensions(mm/in) |
A:36/1.42” |
A:36/1.42” |
|
|
B:46/1.81” |
B:46/1.81” |
|
|
C:3.175/0.125” |
C:3.175/0.125” |
|
|
D:17/0.67” |
D:17/0.67” |
|
|
E:25/0.98” |
E:25/0.98” |
|
|
F:M3*0.5 |
F:M3*0.5 |
|
Max.efficiency current |
10~50A |
10~55A |
|
Max.surge current |
55A/60s |
60A/60s |
|
Internal resistance |
12mΩ |
8mΩ |
|
Weight(g/oz) |
190/6.7 |
190/6.7 |
