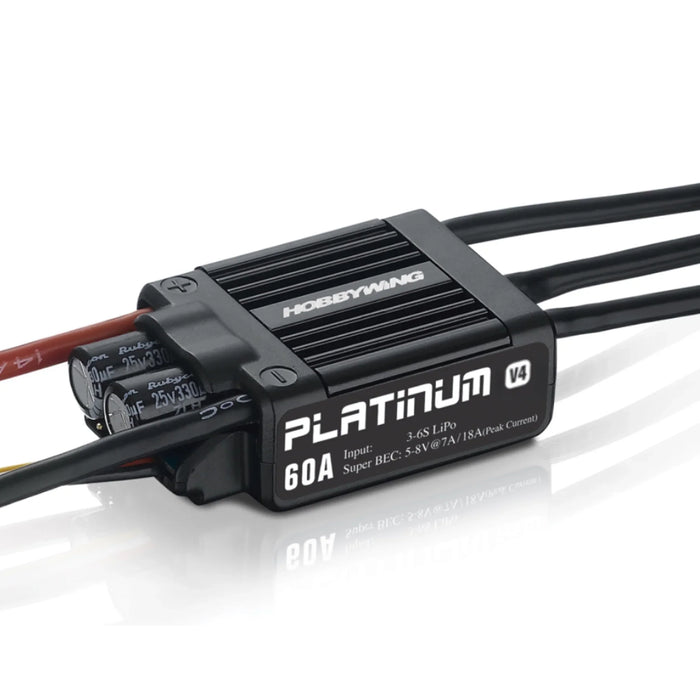

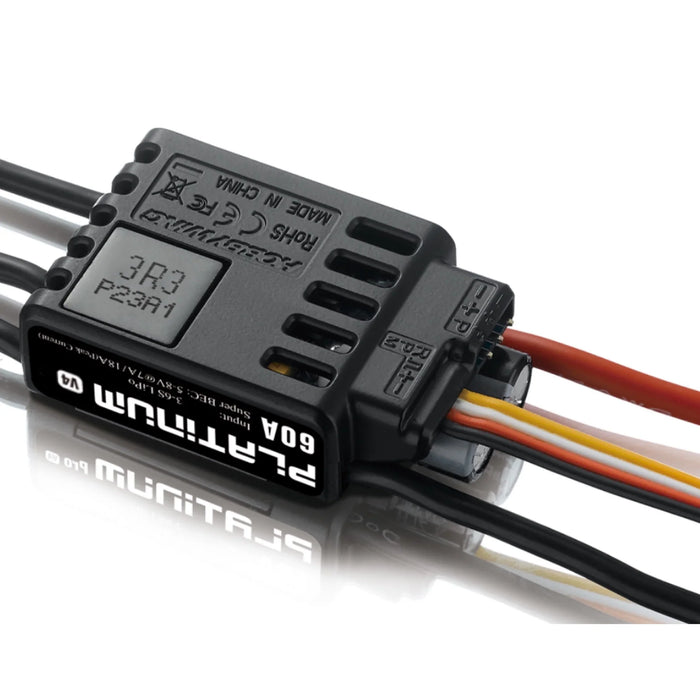

HOBBY WING BRUSHLESS ESC 60A PLATINUM V4
SKU 06321
Sold out
Original price
₹ 11,050.00
-
Original price
₹ 11,050.00
Original price
₹ 11,050.00
₹ 11,050.00
-
₹ 11,050.00
Current price
₹ 11,050.00
|
Model |
Platinum 60A ESC V4 |
|
Application |
450-480 Class Heli (Propeller: 325-360mm) |
|
Input Voltage |
3-6S LiPo |
|
Cont./Peak Current (10s) |
60A/80A |
|
PWM |
18KHz |
|
(Switch-mode) BEC |
5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak |
|
Separate Programming Port |
For connecting LCD Program Box/WIFI Express |
|
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) |
White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire |
|
Input Wires |
Red-14AWG-100mm*1/Black-14AWG-100mm*1 |
|
output wires |
Black-14AWG-75mm*3 |
|
Output connectors |
3.5mm Gold Connectors (Female) |
|
Weight/Size |
49g / 48x30x15.5mm |
