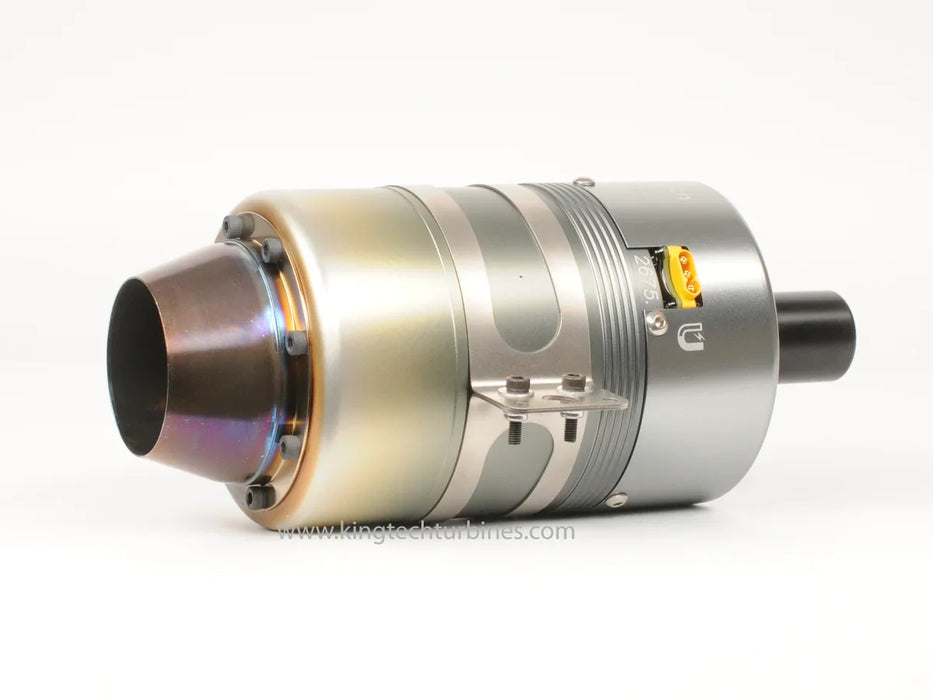

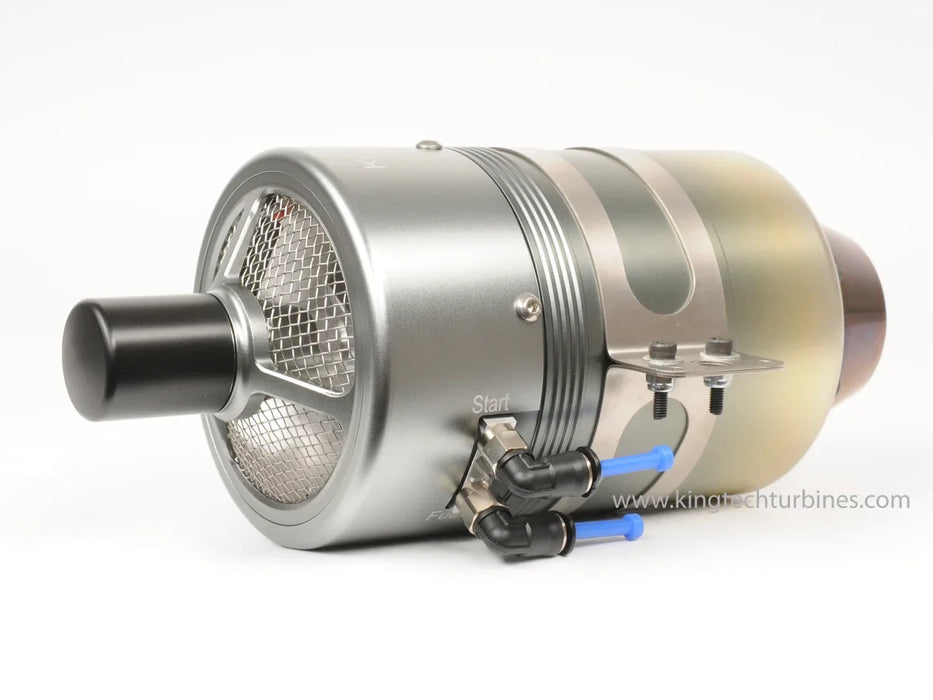

KINGTECH K86G5 TURBINE ENGINE 4.5KG THRUST K 86 G5

Experience unparalleled power and performance with the KINGTECH K86G5 TURBINE ENGINE 4.5KG THRUST K 86 G5. With 4.5kg of thrust, this engine is designed to deliver top-of-the-line efficiency and reliability. Trust in the expertise of KINGTECH to provide a superior engine for all your needs.

K-86G5 SPECIFICATIONS

Diameter: 76mm / 2.99”

Length: 178mm / 7.00”

Weight: 725g / 1.9lb ( not including brackets )

Maximum RPM: 176,000

Thrust: 8.6 kg @ 15°C. / 18.75 lb @ 59°F

EGT: 700°C max

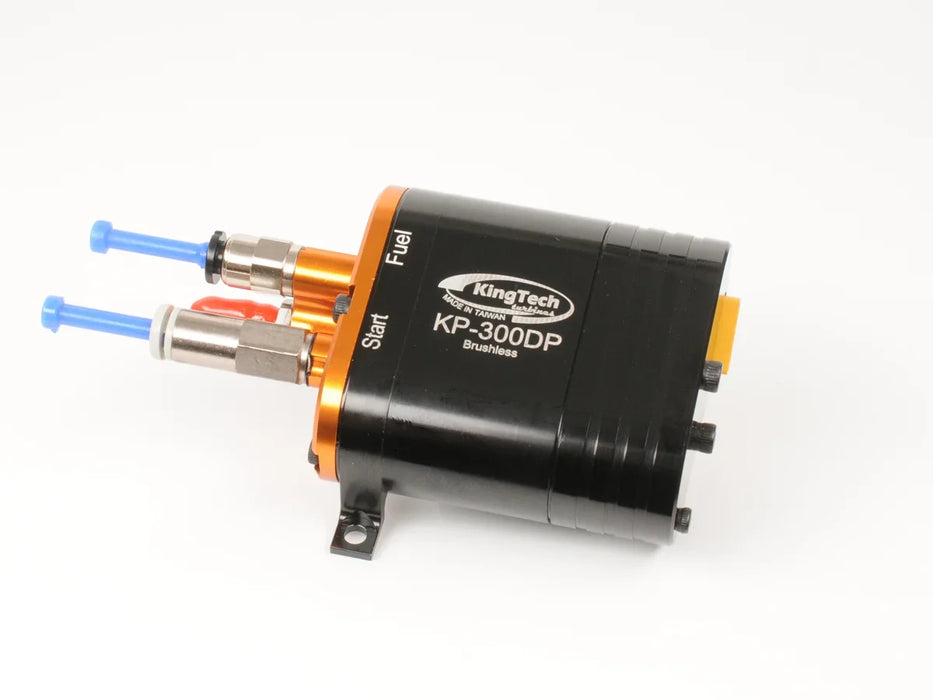

Pump Type: Digital Sbus brushless pump KP300DP

Battery: 11.1v Lipo ( At least 2200mah 35C)

Start Time: 15-20 seconds

Fuel consumption: 300g / min ( 10.58oz )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr

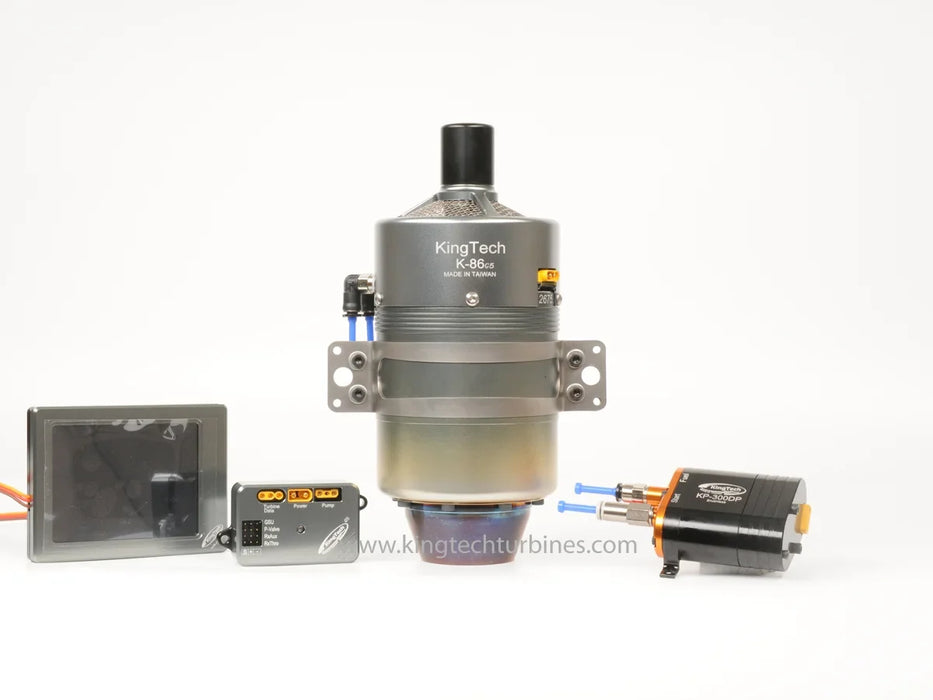

G5 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

• Digital Sbus brushless pump KP300DP

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
